| 產品 |
型號標題 |
功率 |
輸入
電壓 |
輸出
電壓 |
輸出
路數 |
效率
% |
PFC |
尺寸 |
安規認證 |
技術
手冊 |
樣品
申請 |
 |

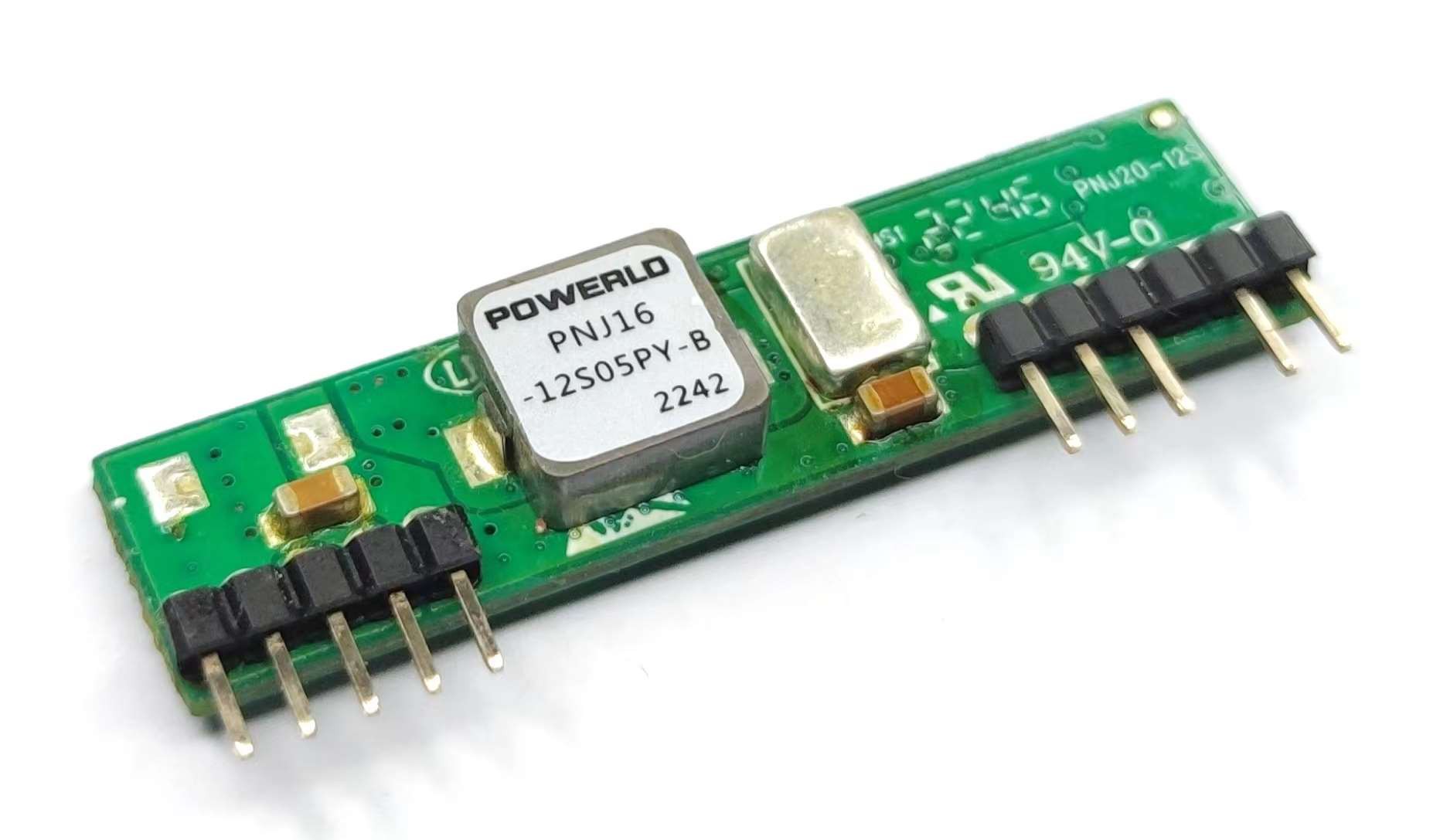

PNJ16-12S05PY-B |
80W |
,8～14VDC, |
5V
|
1 |
94% |
|
50.80*12.70*7.50mm |
|
 |
 |
 |
PNJ16-5SANY |
58W |
,2.9～5.5VDC, |
0.75～3.63V
|
1 |
94% |
|
50.80*12.70*7.50mm |
|
|
|
 |

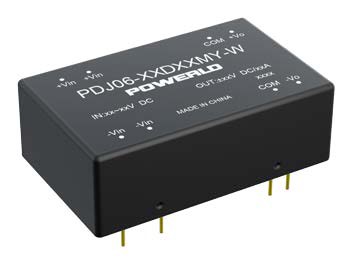

PDJ06-XXDXXMY-W |
6W |
,9~36VDC,18~75VDC, |
±5V ,±12V ,±15V
|
2 |
81% |
|
31.75*20.32*10.16mm |
|
|
|
 |

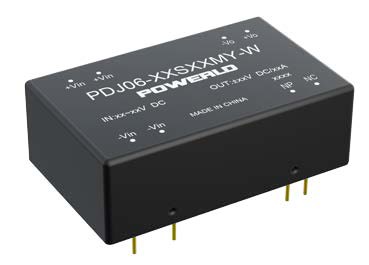

PDJ06-XXSXXMY-W |
6W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V
|
1 |
83% |
|
31.75*20.32*10.16mm |
|
|
|
 |

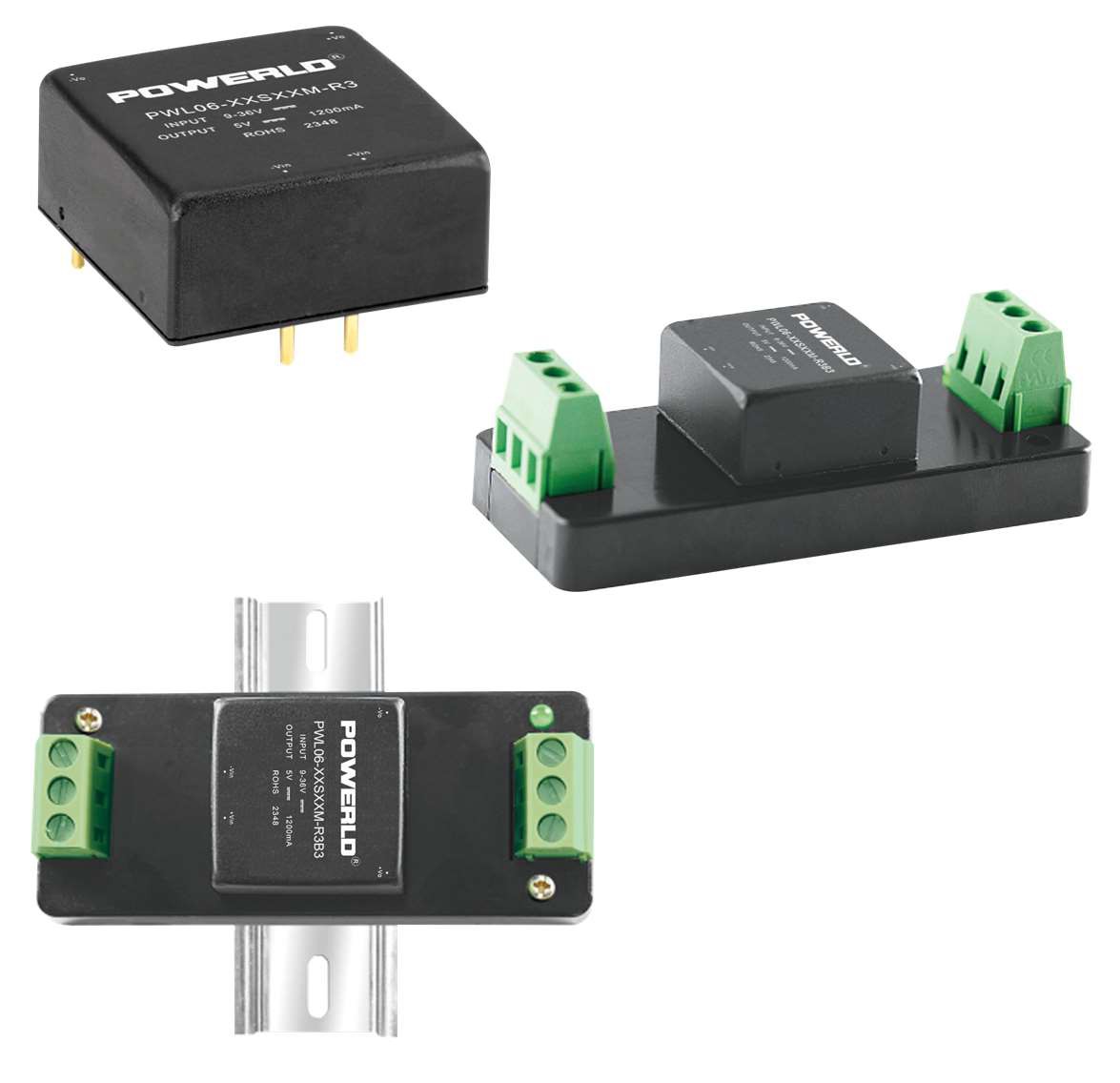

PWL06-XXSXXM-R3 |
6W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V
|
1 |
89% |
|
25.40*25.40*11.70mm |
|
|
|
 |
PS01-XXDXX |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±24V ,±3.3V
|
2 |
84% |
|
22.00*9.50*12.00mm |
|
|
|
 |

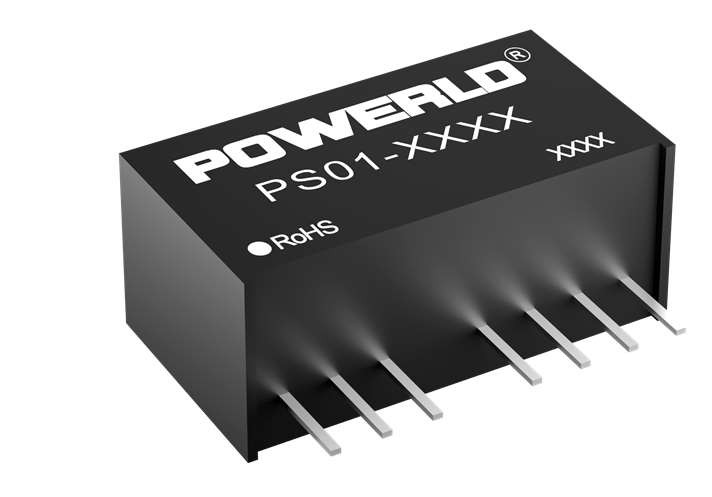

PS01-XXXX |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,12V ,24V
|
1 |
84% |
|
22.00*9.50*12.00mm |
|
|
|
 |

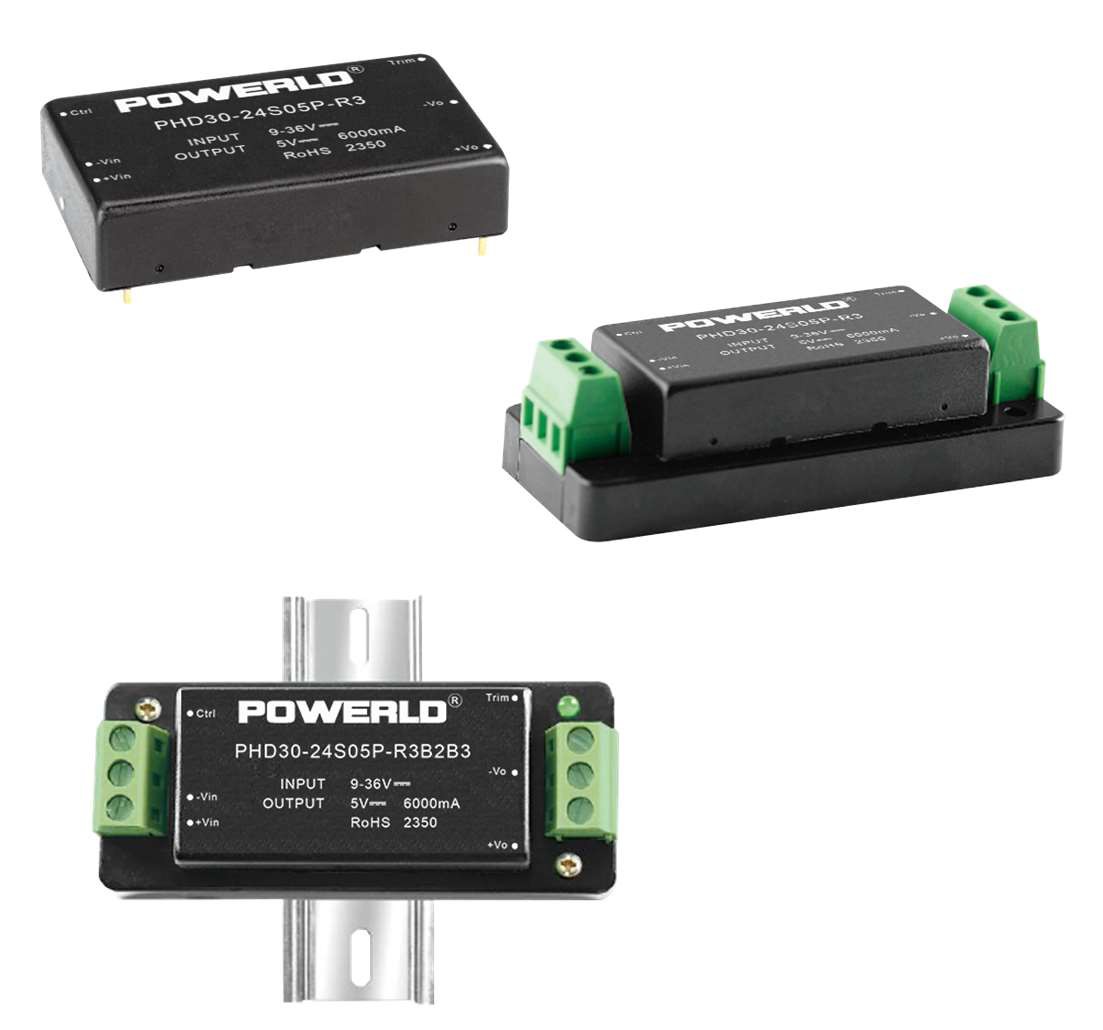

PHD30-XXSXXP-R3 |
30W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V ,24V ,28V
|
1 |
91% |
|
50.80*25.40*12.80mm |
|
|
|
 |

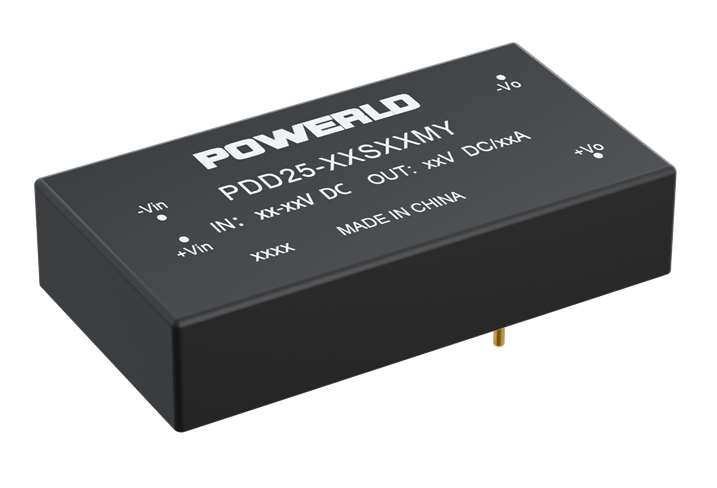

PDD25-XXSXXMY |
25W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V
|
1 |
87% |
|
50.80*25.40*10.16mm |
|
|
|
 |

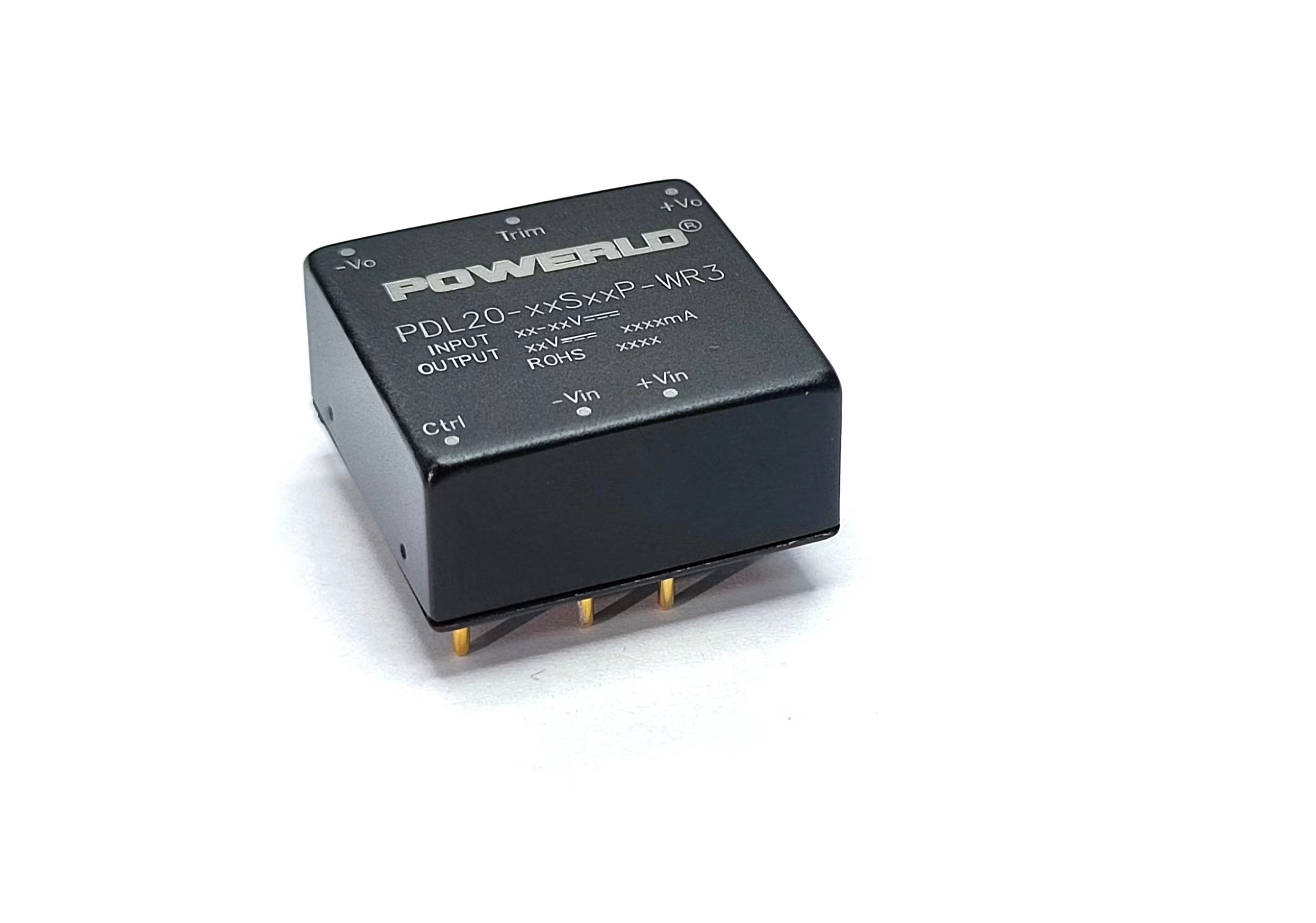

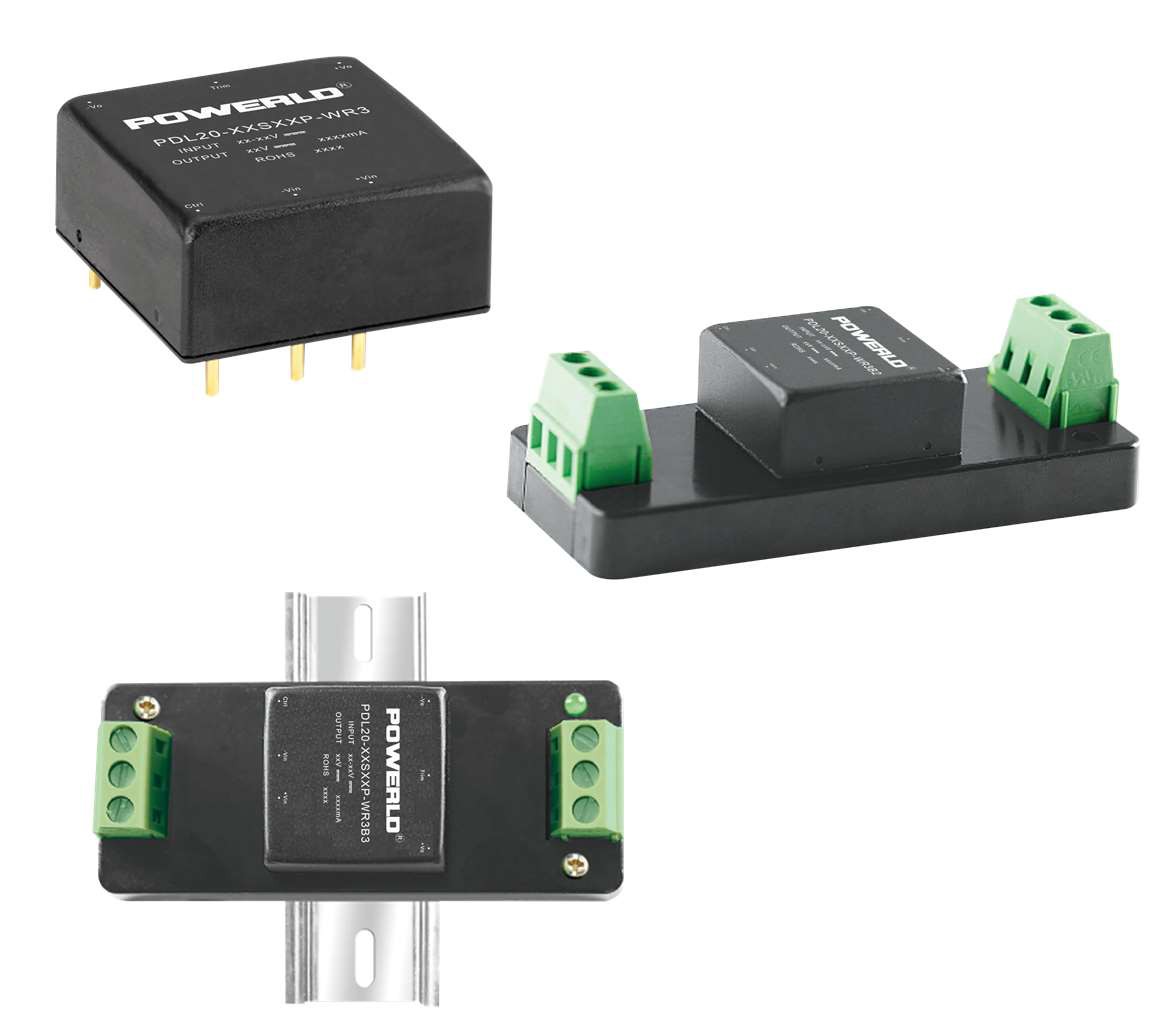

PDL20-XXSXXP-WR3 |
20W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V
|
1 |
92% |
|
25.40*25.40*11.70mm |
|
|
|
 |

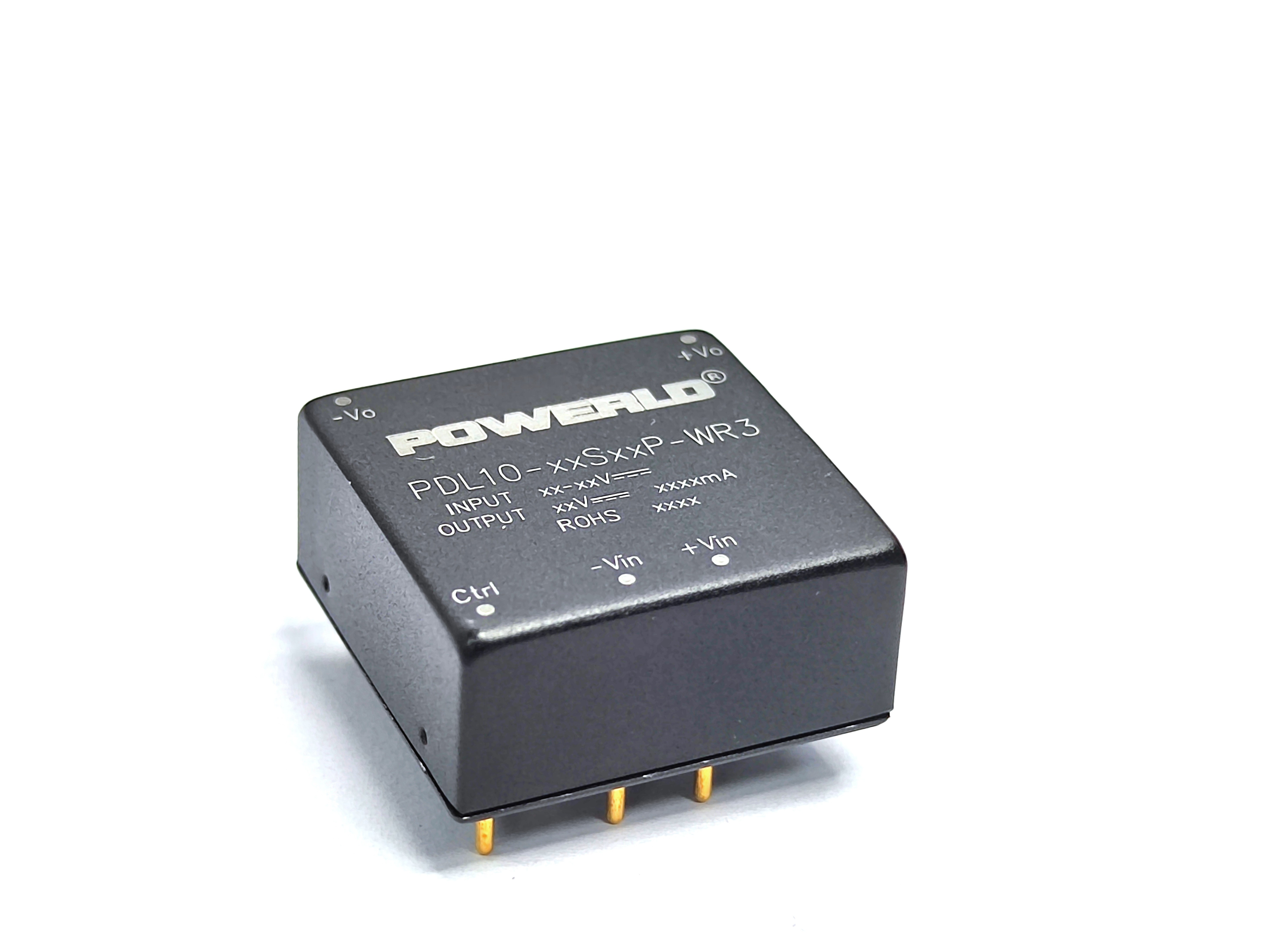

PDL10-XXSXXP-WR3 |
10W |
,9~36VDC,18~75VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
89% |
|
25.40*25.40*11.70mm |
|
|
|
 |

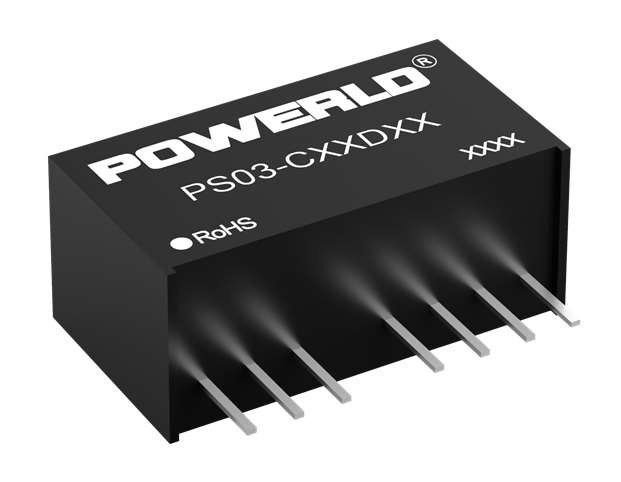

PS03-CXXDXX |
3W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±15V ,±24V
|
2 |
81% |
|
22.00*9.50*12.00mm |
|
|
|
 |

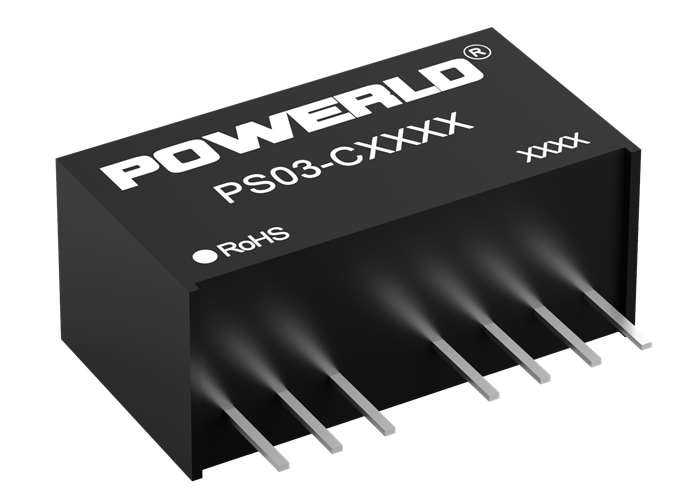

PS03-CXXXX |
3W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
83% |
|
22.00*9.50*12.00mm |
|
|
|
 |

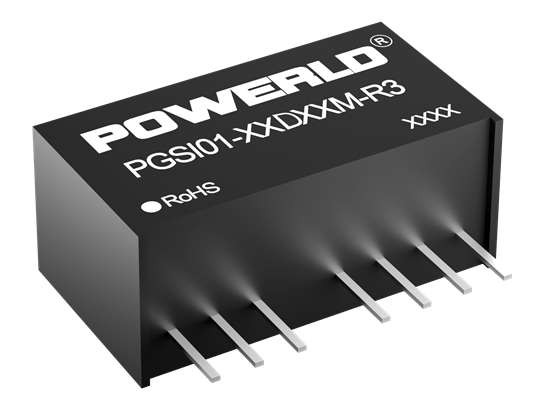

PGSI01-XXDXXM-R3 |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±15V ,±9V ,±24V
|
2 |
82% |
|
22.00*9.50*12.00mm |
|
|
|
 |

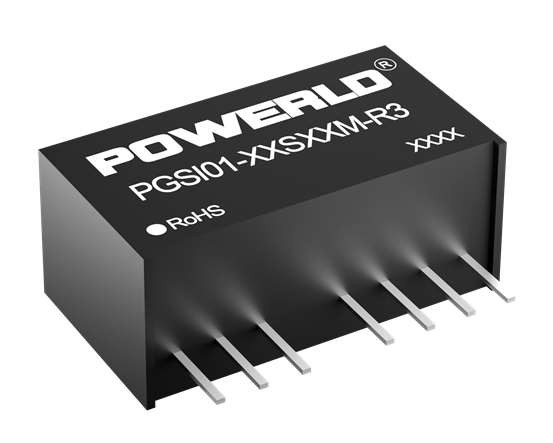

PGSI01-XXSXXM-R3 |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V
|
1 |
82% |
|
22.00*9.50*12.00mm |
|
|
|
 |
PM01-FXXSSXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
76% |
|
13.50*11.50*6.50mm |
|
|
|
 |
PM01-BXXSSXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
76% |
|
13.50*11.50*6.50mm |
|
|
|
 |
PS02-FXXSSXX |
2W |
,5VDC,12VDC,24VDC, |
5V ,12V ,24V
|
1 |
76% |
|
19.60*10.10*6.00mm |
|
|
|
 |
PS02-BXXSSXX |
2W |
,5VDC,12VDC,24VDC, |
5V ,12V ,24V
|
1 |
76% |
|
19.60*10.10*6.00mm |
|
|
|
 |
PFSI01-XXSXXM-R3 |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V
|
1 |
76% |
|
19.60*10.10*6.00mm |
|
|
|
 |
PS01-BXXSSXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
5V ,12V
|
1 |
78% |
|
19.60*10.10*6.00mm |
|
|
|
 |
PSD75-BXXSSXX |
0.75W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,9V ,12V ,15V
|
1 |
74% |
|
11.60*6.00*10.10mm |
|
|
|
 |
PD02-BXXSCXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V
|
1 |
86% |
|
12.70*10.16*7.80mm |
|
|
|
 |
PD01-BXXSCXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
87% |
|
12.70*10.20*7.80mm |
|
|
|
 |
PM01-FXXDCXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
±5V ,±12V ,±15V ,±24V
|
2 |
86% |
|
16.04*11.50*6.50mm |
|
|
|
 |
PM01-FXXSCXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
87% |
|
13.20*11.50*6.50mm |
|
|
|
 |
PM01-BXXSCXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
87% |
|
13.20*11.50*6.50mm |
|
|
|
 |
PS02-HXXDCXX |
2W |
,5VDC,12VDC,24VDC,15VDC, |
±5V ,±12V ,±15V ,±9V
|
2 |
86% |
|
19.50*9.80*12.50mm |
|
|
|
 |
PS02-HXXSCXX |
2W |
,5VDC,12VDC,24VDC, |
5V ,12V ,15V
|
1 |
86% |
|
19.50*9.80*12.50mm |
|
|
|
 |
PS02-FXXDCXX |
2W |
,5VDC,12VDC,24VDC,15VDC, |
±5V ,±12V ,±15V ,±9V
|
2 |
86% |
|
19.60*7.00*10.10mm |
|
|
|
 |
PS02-FXXSCXX |
2W |
,5VDC,12VDC,24VDC, |
5V ,12V ,15V ,24V
|
1 |
86% |
|
19.60*7.00*10.10mm |
|
|
|
 |
PS02-BXXDCXX |
2W |
,5VDC,12VDC,24VDC, |
±5V ,±12V ,±15V
|
2 |
85% |
|
19.60*7.00*10.10mm |
|
|
|
 |
PS02-BXXSCXX |
2W |
,5VDC,12VDC,24VDC, |
5V ,12V ,15V ,24V
|
1 |
86% |
|
19.60*7.00*10.10mm |
|
|
|
 |
PS01-HXXDCXX |
1W |
,5VDC,12VDC,24VDC,15VDC, |
±5V ,±12V ,±15V ,±9V
|
2 |
86% |
|
19.50*9.80*12.50mm |
|
|
|
 |
PS01-HXXSCXX |
1W |
,5VDC,12VDC,24VDC, |
5V ,12V ,15V
|
1 |
86% |
|
19.50*9.80*12.50mm |
|
|
|
 |
PS01-FXXDCXX |
1W |
,5VDC,12VDC,24VDC, |
±5V ,±12V ,±15V
|
2 |
85% |
|
19.60*10.10*6.00mm |
|
|
|
 |
PS01-FXXSCXX |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
87% |
|
19.60*10.10*6.00mm |
|
|
|
 |
PBSL01-XXSXXM-R3 |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V
|
1 |
87% |
|
19.60*10.10*6.00mm |
|
|
|
 |
PBSI01-XXSXXM-R3 |
1W |
,3.3VDC,5VDC,12VDC,24VDC, |
3.3V ,5V ,12V ,15V ,24V
|
1 |
87% |
|
11.60*10.10*6.00mm |
|
|
|
 |
PNJ12-12S07PY-B |
84W |
10~14VDC |
7V
|
1 |
95% |
|
50.80*12.70*7.50mm |
|
|
|
 |

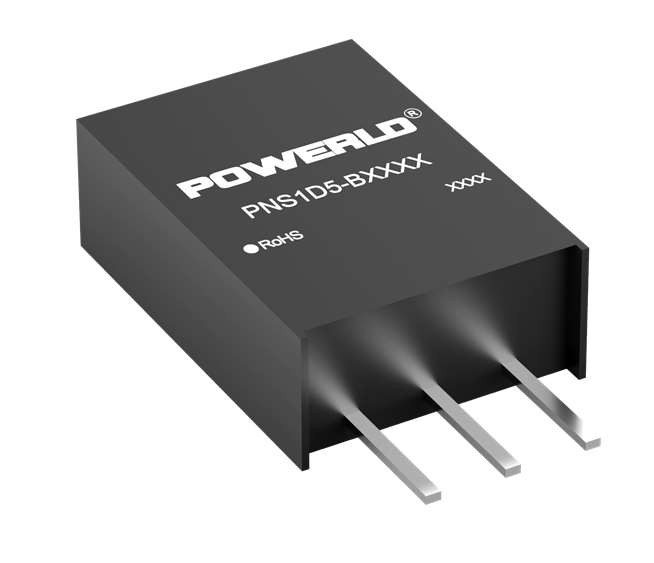

PNS1D5-B24XX |
7.5W |
|
3.3V ,5V
|
1 |
92% |
|
11.75*9.10*17.50mm |
|
|
|
 |

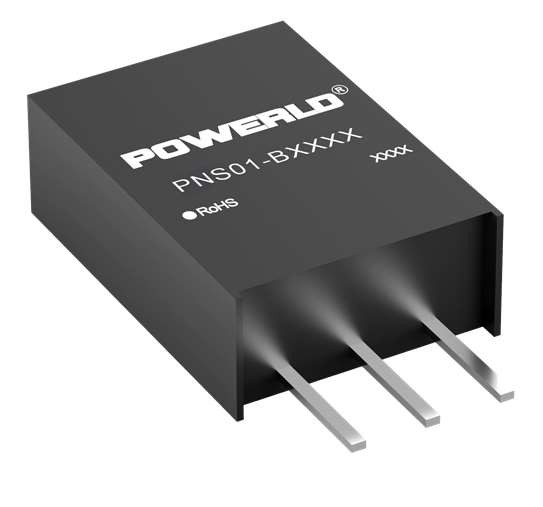

PNS01-B24XX |
15W |
|
3.3V ,5V ,9V ,12V ,15V
|
1 |
96% |
|
11.50*9.10*17.50mm |
|
|
|
 |

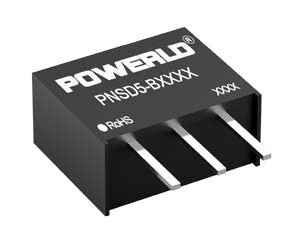

PNSD5-B24XX |
7.5W |
|
3.3V ,5V ,6.5V ,9V ,12V ,15V
|
1 |
96% |
|
11.60*7.50*10.20mm |
|
|
|
 |
PES75-48S12X-(I)R3 |
75W |
,36~75VDC, |
5V ,12V ,28V
|
1 |
92% |
|
33.02*22.86*10.20mm |
|
|
|
 |
PES60-4812N-TX |
60W |
,36~75VDC, |
12V
|
1 |
90% |
|
33.02*22.86*12.70mm |
|
|
|
 |
PES50-48S12X-(I)R3 |
50W |
,36~75VDC, |
3.3V ,5V ,12V ,28V
|
1 |
92% |
|
33.02*22.86*10.20mm |
|
|
|
 |

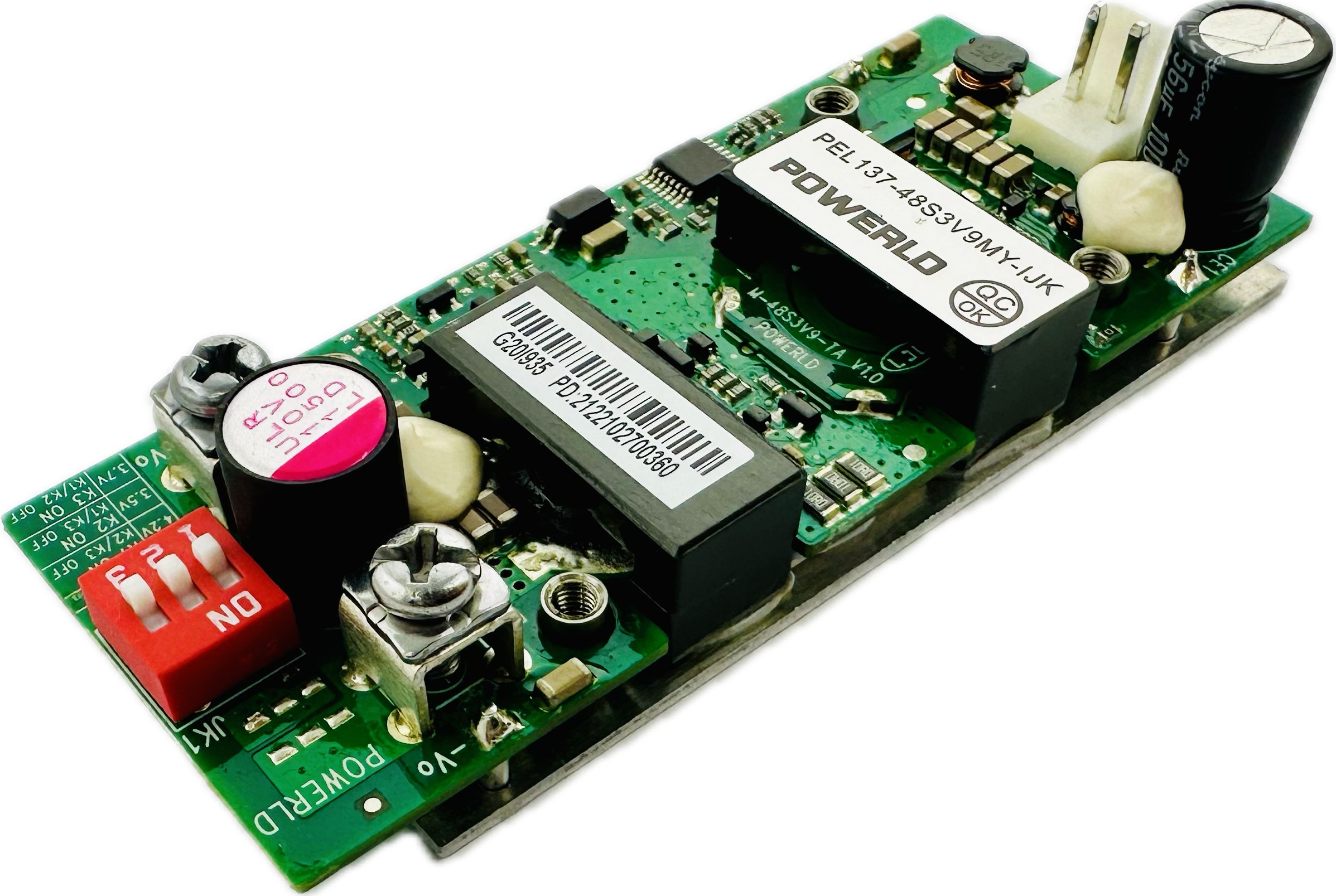

PEL系列 |
137～210W |
36～62VDC |
3.9V ,4.2V ,5V
|
1 |
91.50% |
|
80.00×36.80×22.00mm |
|
|
|
 |
PNJ08-24S04MY |
32W |
12～36VDC |
4.0V
|
1 |
90% |
|
100.00×12.00×12.50mm |
|
|
|
 |

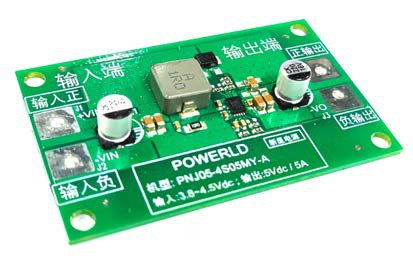

PNJ05-4S05MY-A |
25W |
3.8～4.5VDC |
5V
|
1 |
96% |
|
67.90×41.90×15.00mm |
|
|
|
 |
PNJ03-5S12MY-A |
36W |
4.5～5VDC |
12V
|
1 |
95% |
|
67.90×41.90×15.00mm |
|
|
|
 |
PNS80-12SAPY-B |
160W |
,8～13.8VDC, |
0.84～2V
|
1 |
83% |
|
61.00×31.80×14.60mm |
|
|
|
 |

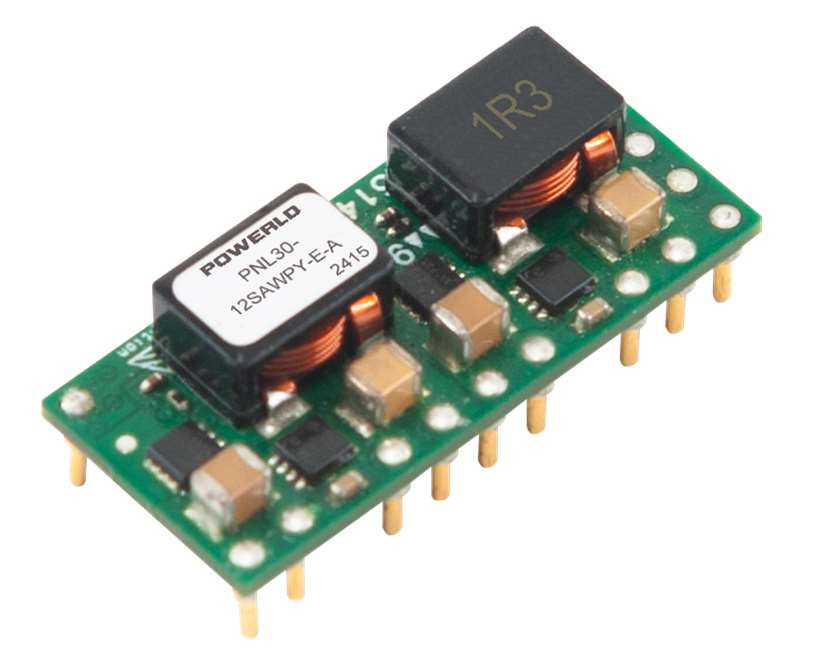

PNL30-12SAWPY-E-A |
108W |
,5.5～14VDC, |
0.7～3.6V
|
1 |
91% |
|
34.80×15.75×9.70mm |
|
|
|
 |
PNJ16-12S4V2PY-B |
67W |
,8～14VDC, |
4.2V
|
1 |
92% |
|
50.80×12.70×7.50mm |
|
|
|
 |
PNS10-12SAN-B |
50W |
,8～14VDC, |
0.75～5V
|
1 |
92% |
|
23.40×10.20×6.90mm |
|
|
|
 |
PNS06-12SAN-B |
30W |
,8～14VDC, |
0.75～5V
|
1 |
92% |
|
23.40×10.20×5.90mm |
|
|
|
 |
PNS06-5SAN-B |
22W |
,2.9～5.5VDC, |
0.75～3.63V
|
1 |
92% |
|
23.40×10.20×5.90mm |
|
|
|
 |
PEQ400-48S48NY-H-6 |
400W |
,36~75VDC, |
48V
|
1 |
91% |
|
57.91×36.81×25.60mm |
|
|
|
 |
PEQ400-48S48NY-I-6 |
400W |
,36~75VDC, |
48V
|
1 |
91% |
|
57.91×36.81×13.70mm |
|
|
|
 |
PEE240-48S12NY-H-6 |
240W |
,36~75VDC, |
12V
|
1 |
94.50% |
|
57.94×22.81×22.00mm |
|
|
|
 |
PEE240-48S12NY-I-6 |
240W |
,36~75VDC, |
12V
|
1 |
94.50% |
|
57.94×22.81×13.50mm |
|
|
|
 |
PEE240-48S12NY-6 |
240W |
,36~75VDC, |
12V
|
1 |
94.50% |
|
57.94×22.81×10.90mm |
|
|
|
 |
PEE150-48SXXNY-I-6系列 |
150W |
,36~75VDC, |
1V ,3.3V ,5V
|
1 |
91.50% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE150-48SXXNY-6系列 |
150W |
,36~75VDC, |
1V ,3.3V ,5V
|
1 |
91.50% |
|
57.94×22.81×9.80mm |
|
|
|
 |
PEE100-48SXXNY-I-6系列 |
100W |
,36~75VDC, |
3.3V ,12V
|
1 |
91% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE100-48SXXNY-6系列 |
100W |
,36~75VDC, |
3.3V ,12V
|
1 |
91% |
|
57.94×22.81×9.80mm |
|
|
|
 |
PEE75-48SXXNY-I-6系列 |
75W |
,36~75VDC, |
5V ,12V ,48V ,14V
|
1 |
92% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE75-48SXXNY-6系列 |
75W |
,36~75VDC, |
5V ,12V ,48V ,14V
|
1 |
92% |
|
57.94×22.81×9.80mm |
|
|
|
 |
PEE50-48SxxNY-I-6系列 |
50W |
,36~75VDC, |
12V
|
1 |
91% |
|
57.94×22.81×12.70mm |
|
|
|
 |
PEE50-48SxxNY-6系列 |
50W |
,36~75VDC, |
12V
|
1 |
91% |
|
57.94×22.81×9.80mm |
|
|
|
 |
PDL20-24SxxP-R3系列 |
20W |
9～36VDC |
3.3V ,5V ,9V ,12V ,15V ,24V
|
1 |
92% |
|
25.40mm×25.40mm×11.70mm |
|
|
|
 |
PDL10-48SxxP-R3系列 |
10W |
18～75VDC |
3.3V ,5V ,12V ,15V ,24V
|
1 |
89% |
|
25.40mm×25.40mm×11.70mm |
|
|
|
 |
PDL10-24SxxP-R3系列 |
10W |
9～36VDC |
3.3V ,5V ,12V ,15V ,24V
|
1 |
89% |
|
25.40mm×25.40mm×11.70mm |
|
|
|
 |
PDJ06-48DxxMY-W系列 |
6W |
18～75VDC |
5V ,12V ,15V
|
2 |
82% |
|
31.75mm×20.32mm×10.16mm |
|
|
|
 |

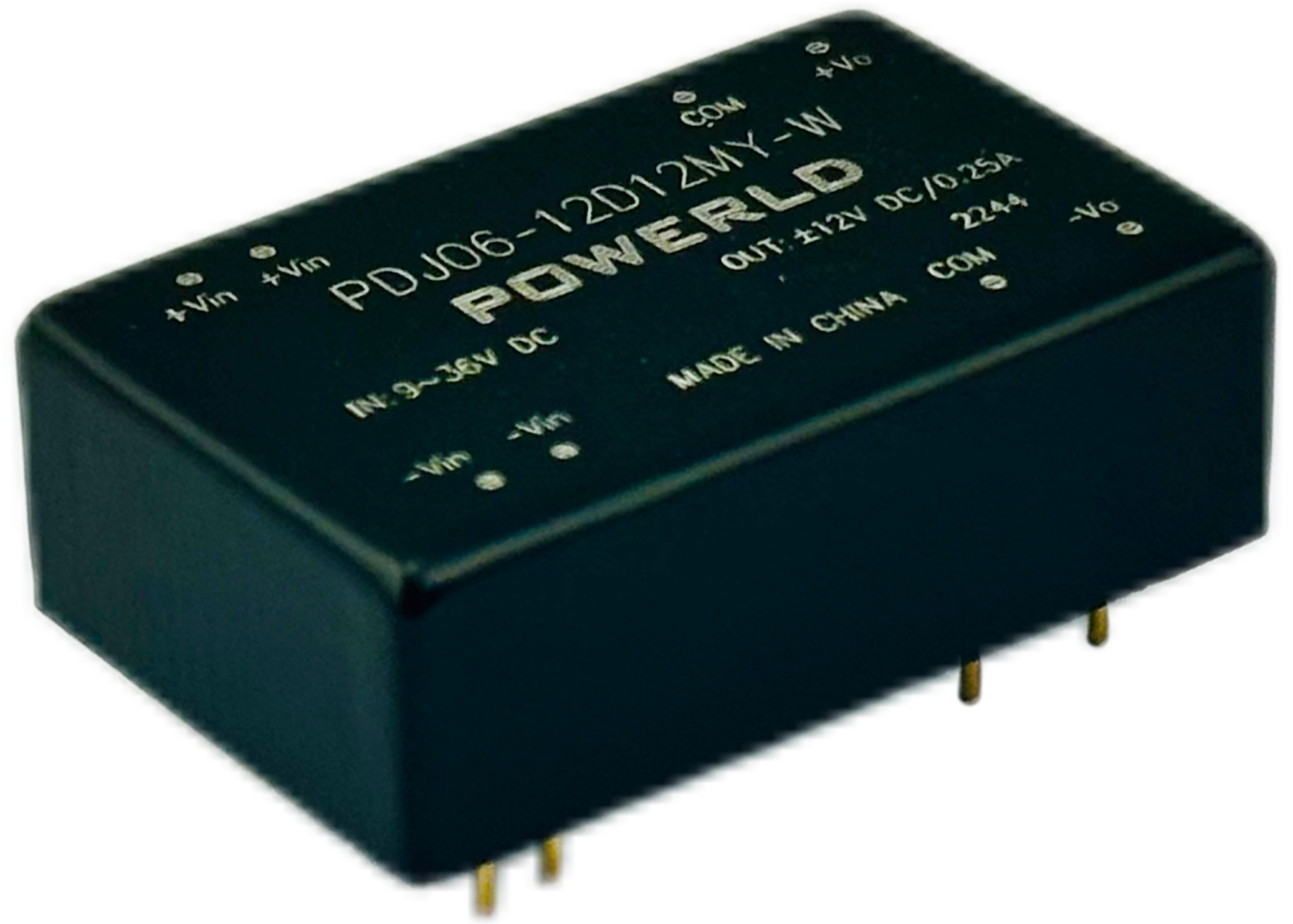

PDJ06-12DxxMY-W系列 |
6W |
9～36VDC |
|
2 |
82% |
|
31.75mm×20.32mm×10.16mm |
|
|
|
 |

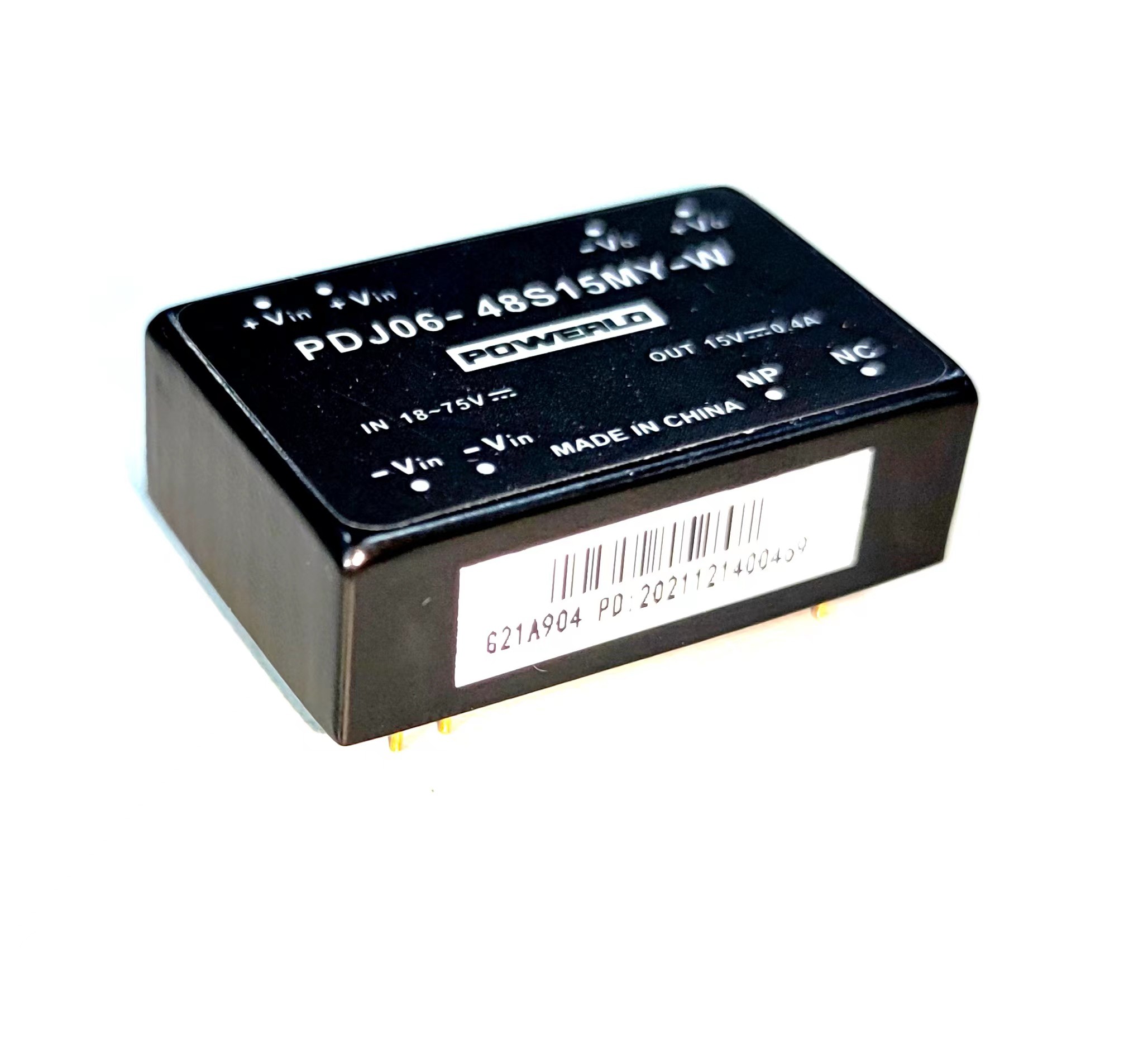

PDJ06-48SxxMY-W系列 |
6W |
18～75VDC |
3.3V ,5V ,12V ,15V
|
1 |
83% |
|
31.75mm×20.32mm×10.16mm |
|
|
|
